AfterVLX 100 Double Swing / French Door in Miami Gardens, FL | TruePane Windows & Doors
The VLX 100 Double Swing / French Door is a paired aluminum door system built for wide openings and clean sightlines, and it’s one of the most requested products we install across Miami Gardens. Homeowners choose it when they want a true French door feel without the warping, sticking, or maintenance headaches that come with wood. As an authorized ViewLux installation partner, TruePane Windows & Doors handles everything from measurement to final walkthrough, so the door performs exactly as engineered. If you’re pricing out a replacement or planning new construction, call (386) 516-5343 for a free on-site estimate.
Product Overview - VLX 100 Double Swing / French Door

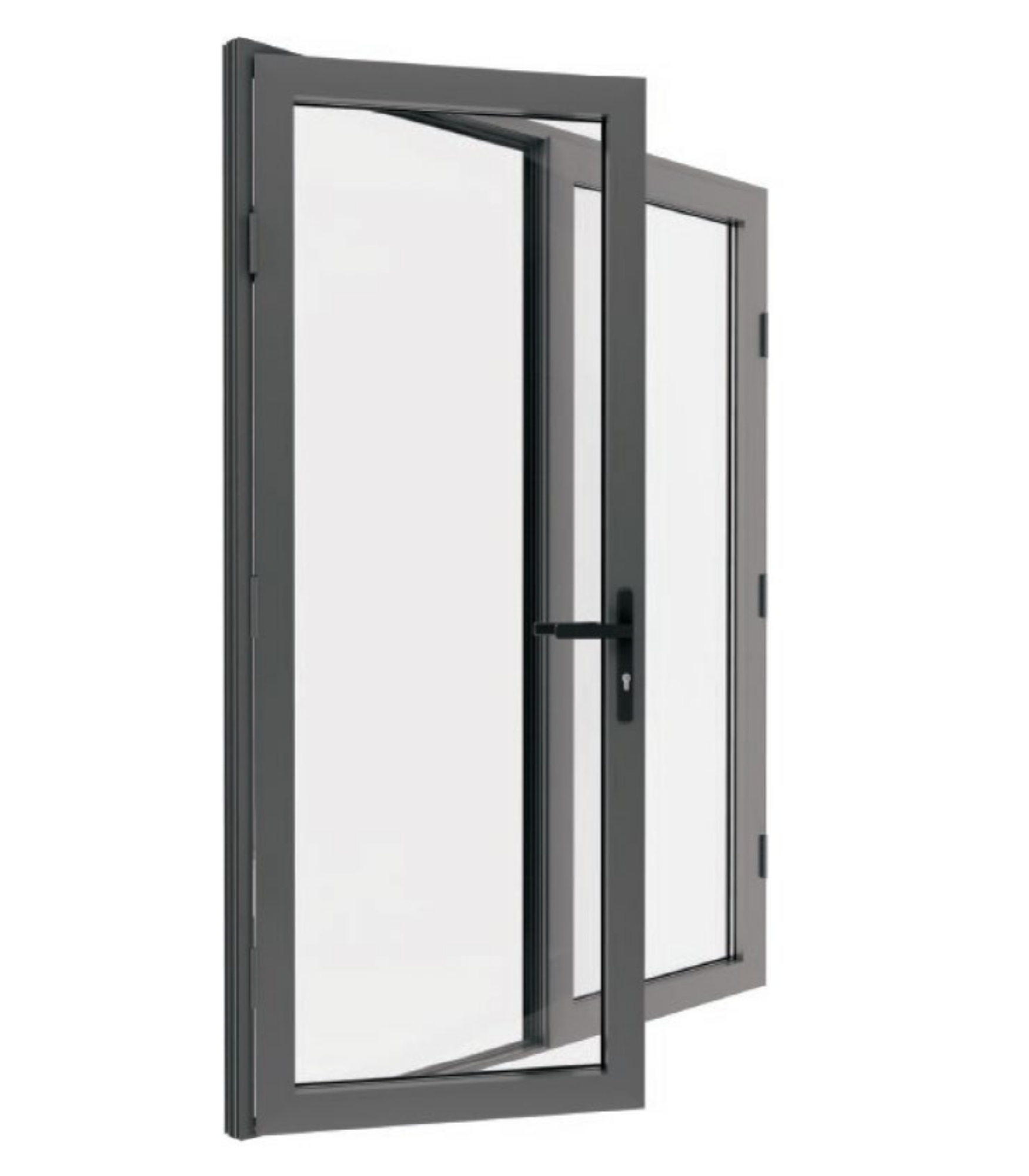

The VLX 100 is what we recommend when a homeowner wants paired French doors with symmetrical sightlines and a threshold you don’t trip over. Two door panels meet in the middle without a fixed center post, which means when both panels are open, the entire opening is clear. That’s the detail people notice first when we install one in a Miami Gardens living room or patio.
The frame is extruded aluminum with a profile width of 2.56 inches, which gives the door real structural presence without looking bulky. Wall thickness comes in at 0.098 inches, a spec that matters because it resists the flex and racking you get with thinner aluminum frames under heat load. And the flush threshold is a practical choice for households with wheelchairs, walkers, or just kids running in and out, because there’s no raised lip to catch a foot.

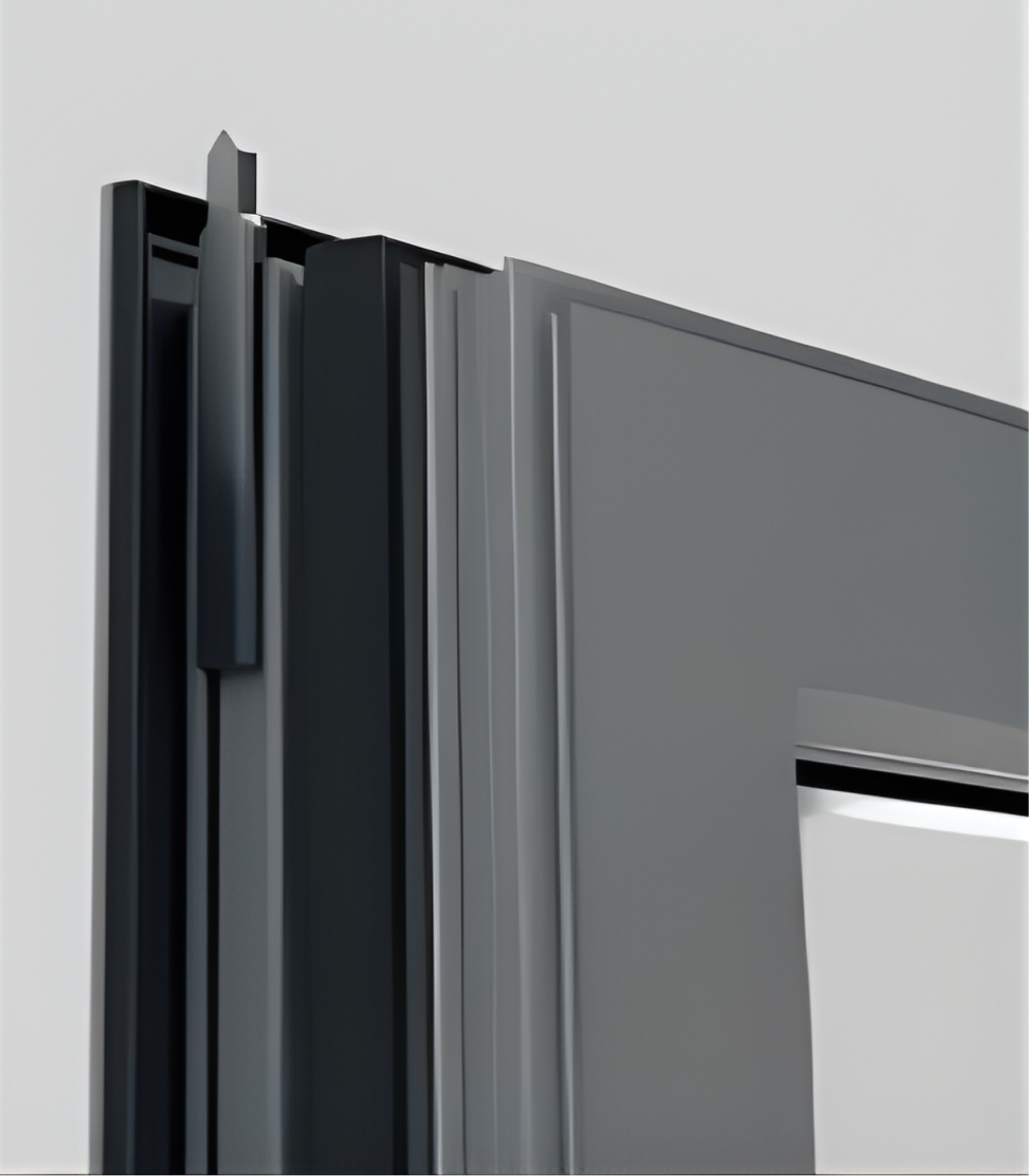

Locking is handled by multi-point hardware. Instead of a single latch at the handle, the door engages at multiple points along the frame when you lock it. For a double swing configuration, that hardware is installed on the active panel and secures into the passive panel and head jamb. It’s the kind of detail that makes a real difference in how the door feels when it closes, and how it holds up against wind pressure during hurricane season in Miami Gardens.
Technical Specifications
Here are the numbers and options that define the VLX 100 Double Swing configuration as we order and install it:
- Wall thickness: 0.098 inches on the aluminum extrusion
- Frame profile width: 2.56 inches
- Maximum span: up to 96 inches wide for paired panels
- Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
- Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable screen, or none

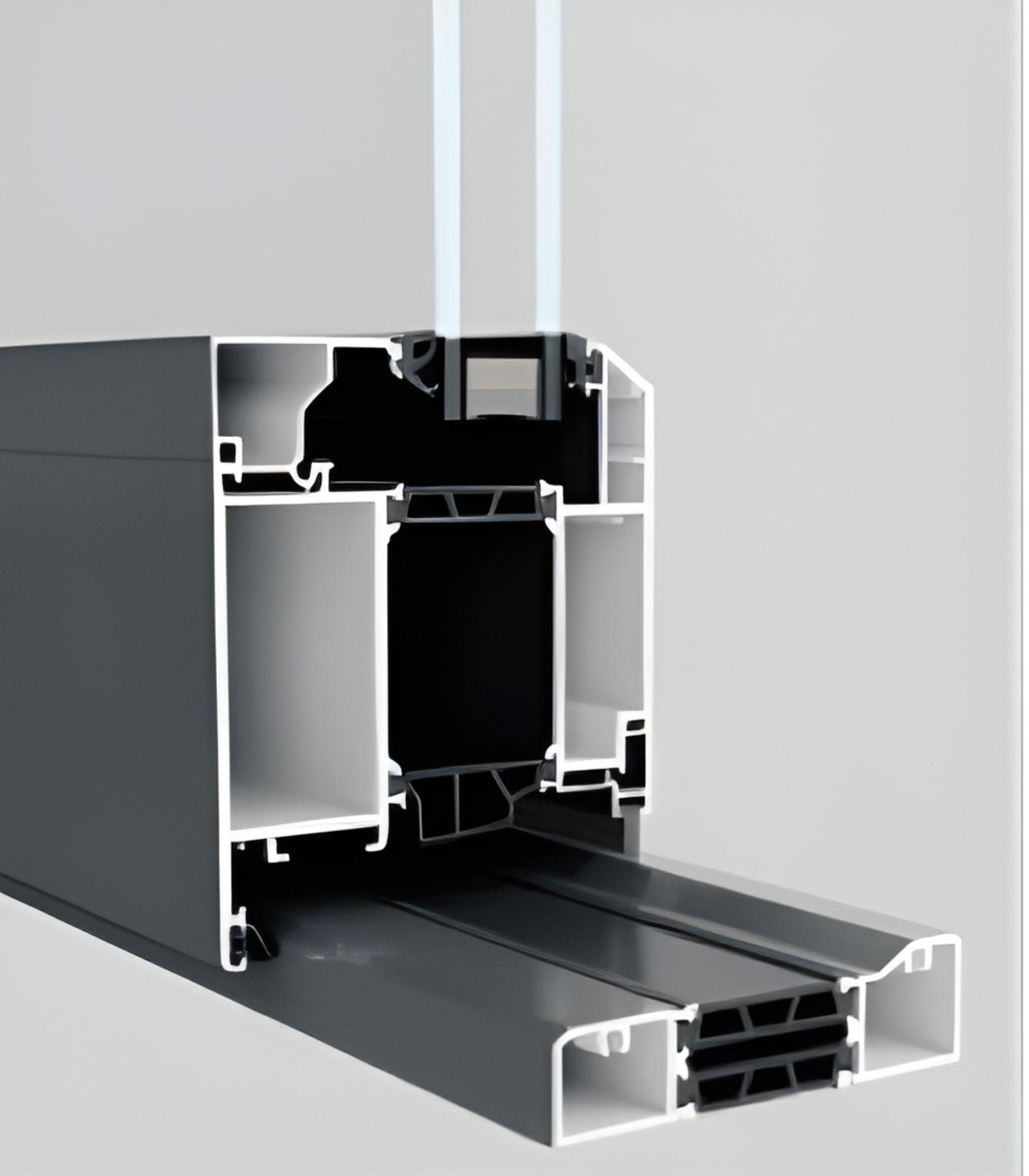

- Threshold: Flush sill for unobstructed passage
- Hardware: Multi-point lock on the active panel
These specs are the ones we configure with ViewLux based on your opening size, exposure, and whether the door faces direct sun or gets hit with driven rain during summer storms in Miami Gardens.
Performance Features

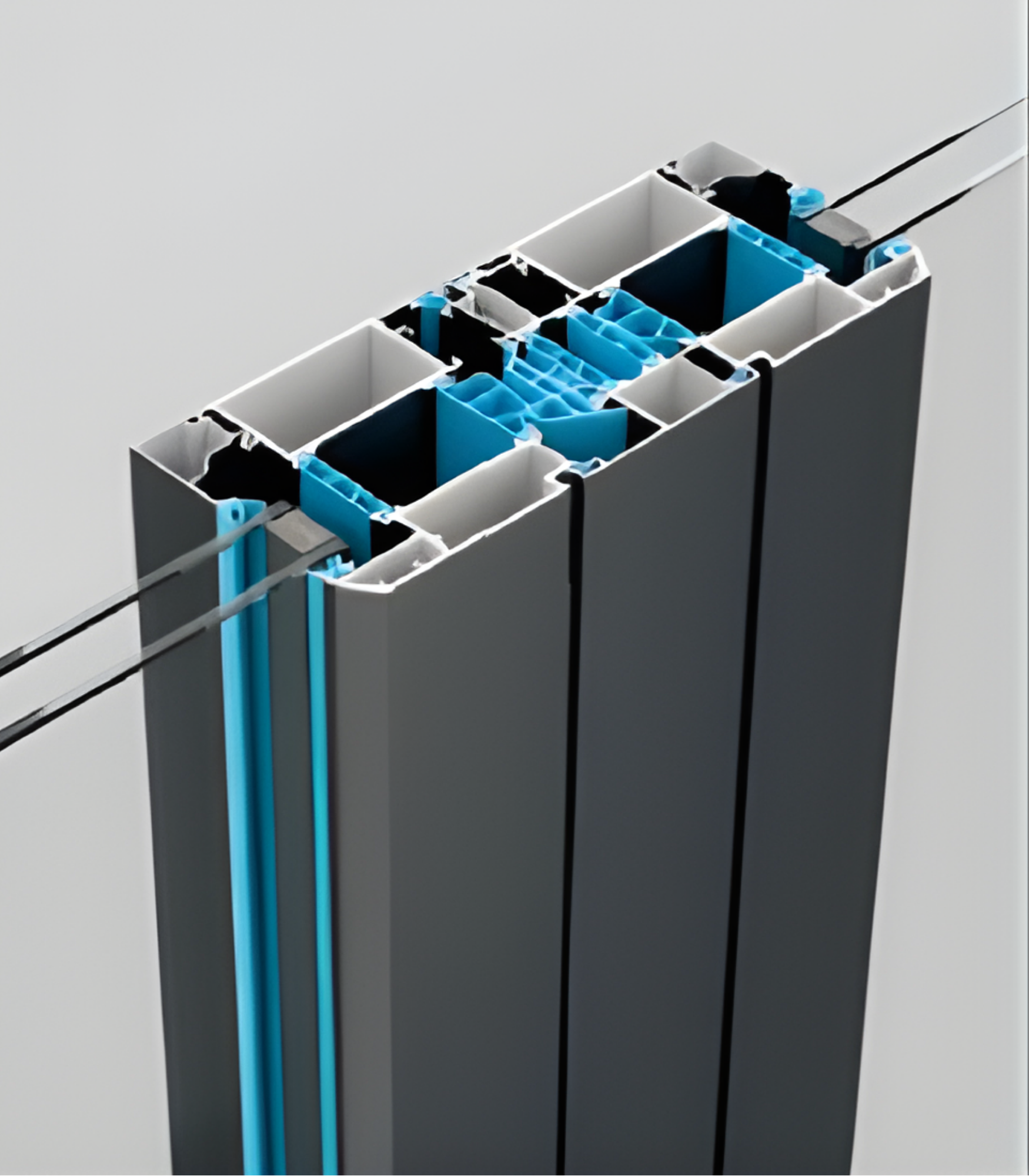

Thermal Efficiency - The VLX 100 frame uses thermal break technology, which separates the interior and exterior aluminum to reduce heat transfer. Paired with Low-E glass, that keeps Miami Gardens air conditioning on the right side of the door. NFRC-rated performance data is available per configuration so you know exactly what you’re getting before we order it.
Acoustic Performance - Aluminum French doors sit on busy streets a lot. The VLX 100’s frame tolerances and weather seals help cut exterior noise, and laminated glass takes it further. If you live near NW 27th Avenue or the Turnpike corridor in Miami Gardens, we’ll usually recommend laminated glass for the sound control benefit before we talk about impact resistance.
Airtightness & Weather Seal - The door is designed with compression gaskets around the full perimeter, so it seals tight when closed. That means less conditioned air leaking out, fewer hot drafts in summer, and better overall comfort. Airtightness isn’t a marketing buzzword on this product; it’s a measurable performance characteristic.
Waterproofing - Miami Gardens gets heavy afternoon rain for months out of the year. The VLX 100 sill design and perimeter sealing, when installed correctly, prevent water from driving in under the panels. We add AAMA 812 low-expansion foam sealant at every perimeter joint during installation, which is the step most installers skip and the one that prevents callbacks after the first storm.
Wind Resistance - This matters more in Miami Gardens than most places. The VLX 100 is wind-load rated for local climate requirements, and with impact-resistant laminated glass, it can be engineered to meet Miami-Dade and Florida Building Code requirements for protected openings. If you’re in a wind-borne debris zone, we’ll spec it accordingly.
Security & Hardware - Multi-point locking hardware engages at the top, bottom, and center of the door. That makes the door far harder to kick in than a single-point latch. The flush threshold also means there’s less gap at the bottom for something to pry against. Security wasn’t an afterthought on this door.
Color & Glass Options
The VLX 100 comes in six finishes. Premium Black has become the default choice for modern and contemporary homes in Miami Gardens, especially paired with white stucco or gray exteriors. Pure White suits traditional or coastal styles and keeps frames cooler to the touch in direct sun. Anodized Silver is the closest to classic aluminum, works well on mid-century homes, and never shows scratches the way painted finishes can. Bronze is darker without being black, a good middle ground. Champagne reads warm and subtle, and we’ve seen it used beautifully on cream-colored homes. Teak Wood is a wood-look finish that gives you the French door aesthetic without rot, termites, or repainting.
Glass selection depends on where the door is going. Clear maximizes light and visibility. Frosted and Obscure give privacy without sacrificing light, useful for bedrooms or bathrooms opening to a patio. Low-E cuts solar heat gain, which pays off on any west-facing door in Miami Gardens. Tempered is safety-rated and required in many locations by code. Laminated adds impact resistance and noise reduction, and it’s the option we recommend most often on this product in South Florida.
Installation by TruePane Windows & Doors in Miami Gardens
We install the VLX 100 the way the manufacturer requires, because an improperly set French door is a warranty claim waiting to happen. Our process starts with a pre-install inspection. We measure the rough opening in three places for width and height, check that the floor is level or identify what we need to do about it, and verify the opening is structurally sound before ordering a door that’s built to fit.
On install day, we set the frame level, plumb, and square, shimming as needed and anchoring per AAMA 2400 and 2410 installation standards. Those standards define proper flashing, anchoring, and sealing for fenestration products, and we follow them on every single job in Miami Gardens. After the frame is set, we apply AAMA 812-compliant low-expansion foam sealant around the entire perimeter joint. That foam creates an airtight, water-resistant seal without bowing the frame, something that happens when installers use the wrong expanding foam.
Once the panels are hung and adjusted, we run a water test on the sill and threshold to confirm no leaks. We check operation of both panels, adjust the multi-point lock so it engages cleanly, and verify the sweep seals are making contact. Then we clean up the work area and walk you through operation and maintenance before we leave. Proper installation is the only way to keep the manufacturer warranty valid, and it’s not a step you can cut corners on in a climate as demanding as Miami Gardens, where heat, humidity, and wind load all work against a door every single day.
Frequently Asked Questions - VLX 100 Double Swing / French Door
Lead time typically runs 4 to 8 weeks from order confirmation, depending on the glass package, finish, and size configuration you choose. Custom spans or laminated glass can push toward the longer end of that range. We confirm the expected delivery date when we place the order and keep you updated as it moves through production. Call (386) 516-5343 to get a current timeline for your specific configuration.
The VLX 100 can qualify when configured with Low-E glass that meets current ENERGY STAR criteria for the South Florida climate zone. Qualification depends on the specific glass package and the NFRC-rated U-factor and SHGC values for your exact build. We’ll pull those numbers for you before you commit, so you know whether your configuration qualifies. Call (386) 516-5343 and we’ll spec it correctly from the start.
ViewLux provides a manufacturer warranty on the frame, glass, and hardware, and coverage terms vary by component. Beyond that, our installation workmanship is backed by TruePane Windows & Doors so you’re covered if something related to the install ever comes up. A critical point: the manufacturer warranty is void if the door is installed incorrectly, which is one more reason to use an authorized partner. Call (386) 516-5343 to review warranty details for your project.
Yes, within the product’s engineered limits. The maximum total span for the paired panel configuration is 96 inches wide, and we order every door to your exact rough opening dimensions rather than forcing a stock size into a non-standard opening. That’s the right way to do it, especially in older Miami Gardens homes where openings were rarely built to modern standard sizes. Call (386) 516-5343 for a free measurement.
Aluminum frames need very little maintenance compared to wood or vinyl. We recommend wiping the frame and glass with mild soap and water twice a year, cleaning the sill track of debris, and lubricating the multi-point lock and hinges annually. In coastal-adjacent climate conditions, salt and humidity can build up, so a rinse during the rainy season helps keep the finish clean. Call (386) 516-5343 if you notice any stiffness in operation, it’s usually a ten-minute fix if caught early.
Get a Quote - VLX 100 Double Swing / French Door in Miami Gardens
If the VLX 100 Double Swing / French Door sounds like the right fit for your Miami Gardens home, the next step is a free on-site measurement and line-item quote. We’ll confirm the opening size, check for any structural issues that need addressing, and spec the door with the right glass, finish, and hardware for your exposure and budget. Call (386) 516-5343 to schedule your free estimate.
Written by the team at TruePane Windows & Doors, serving Miami Gardens, FL as an authorized ViewLux installation partner.
